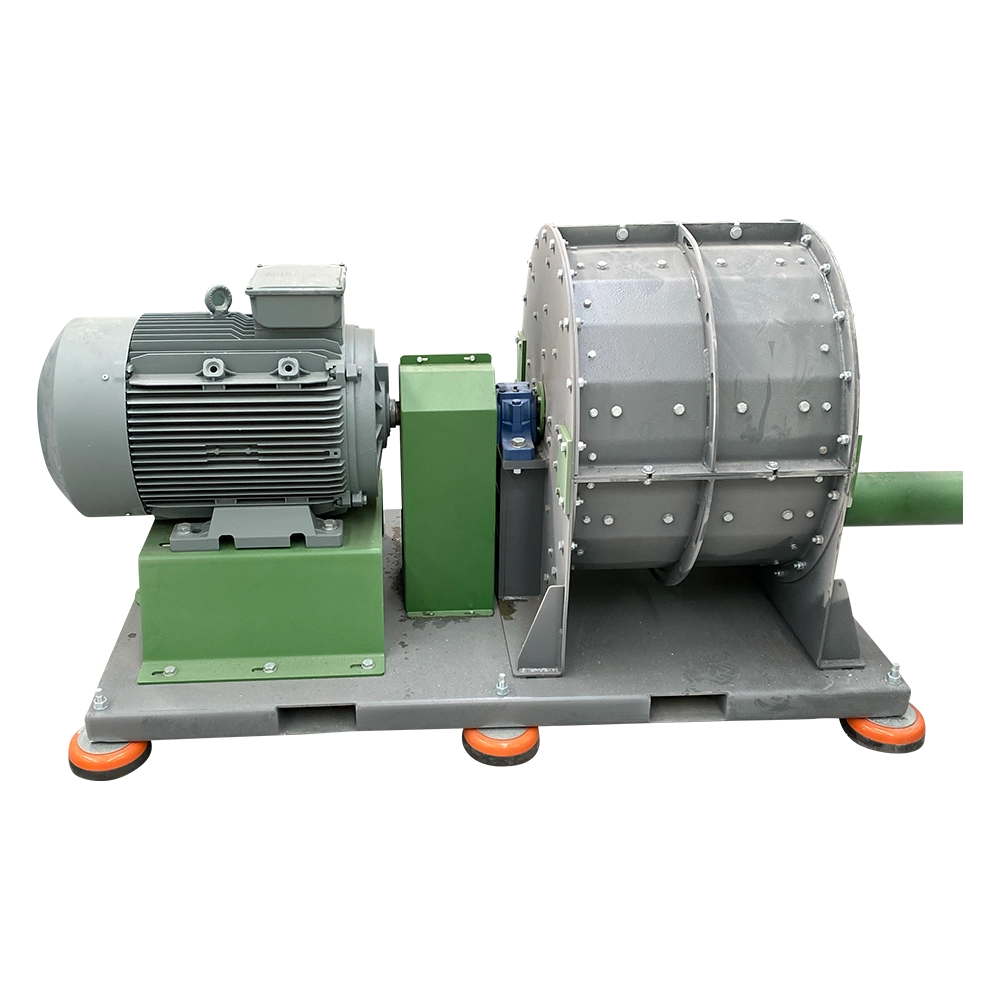

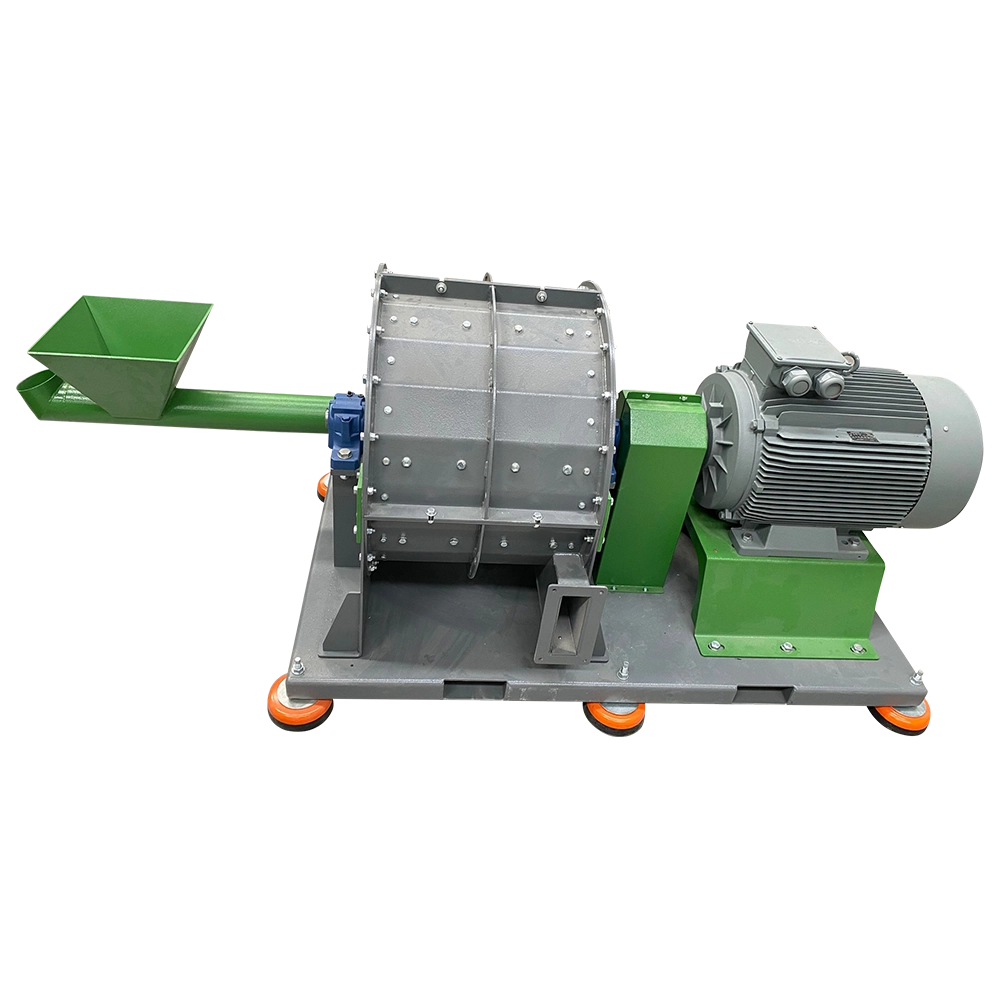

Turbo Mill
The TRM Series Turbo Mills is an advanced grinding system used primarily in the recycling of electronic boards and cables for the effective crushing and grinding of these materials. Plastics, metals, and other components found in electronic boards and cables are reduced to fine particles and transformed into recyclable raw materials thanks to this machine. With its high-speed rotors, the Turbo Mill carries out the grinding process, reducing materials to micron sizes through friction and impact forces.
Recyclable Materials
Technical Specification
| TRM S1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 15 kW / 20.1 HP |
| ROTOR DIAMETER | 380 mm / 15" |
| OVERALL LENGHT | 1.420 mm / 56" |
| OVERALL WIDTH | 700 mm / 27.5" |
| OVERALL HEIGHT | 700 mm / 27.5" |
| OVERALL WEIGHT | 660 kg / 1,455 lb |
| TRM M1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 30 kW / 40.2 HP |
| ROTOR DIAMETER | 500 mm / 19.6" |
| OVERALL LENGHT | 1.680 mm / 66.1" |
| OVERALL WIDTH | 820 mm / 32.2" |
| OVERALL HEIGHT | 920 mm / 36.2" |
| OVERALL WEIGHT | 870 kg / 1,920 lb |
| TRM L1 | |
|---|---|
| FEATURE | VALUE |
| TOTAL POWER | 45 kW / 60.3 HP |
| ROTOR DIAMETER | 620 mm / 24.4" |
| OVERALL LENGHT | 1.790 mm / 70.5" |
| OVERALL WIDTH | 940 mm / 37" |
| OVERALL HEIGHT | 1.040 mm / 40.9" |
| OVERALL WEIGHT | 1.000 kg / 2,205 lb |
